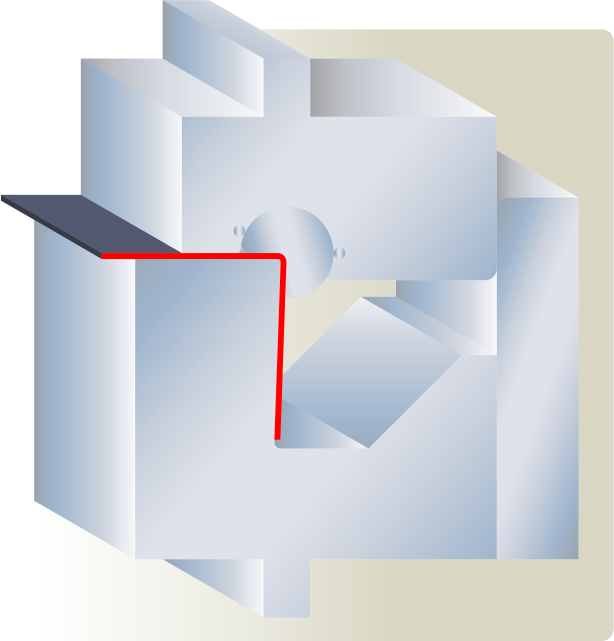

The W-4 wiping die set produces a flange via a rotary wiping action. Shimming an insert at the back of the die will adjust the small variations in material thickness. When forming on three or four sides of a sheet the forming insert can be sectionalized for varying panel lengths. Over bend is built into the die set for sprinback in heavier materials.
